상세 정보 |
|||
인증: | CE, ASTM, ISO, Green Leaf | 모델 부정.: | 1100년 |
---|---|---|---|
상표: | 오동 ZWM | 운반 포장: | 팔레트 |
상술: | 1220mm*2440mm | 식자재원산지정보: | 정저우 허난 |
HS는 코드화됩니다: | 76061251 | 공항: | 칭다오, 중국 |
생산력: | 매년마다 8500000개 부분 / | 표면 마감: | 코팅 |
패널 두께: | 3mm | 알루미늄 간격: | 0.3mm |
기능: | 안티 스태틱이고 항박테리아여 곰팡이 증명을 내화성으로 하기 | 용법: | 다른 금속을 입힌 신호, 인쇄하는 것 |
하이 라이트: | ACP 나무로 된 알루미늄 복합체 Panel,0.6mm 나무로 된 알루미늄 복합패널,간판 알루미늄 복합패널 |
제품 설명

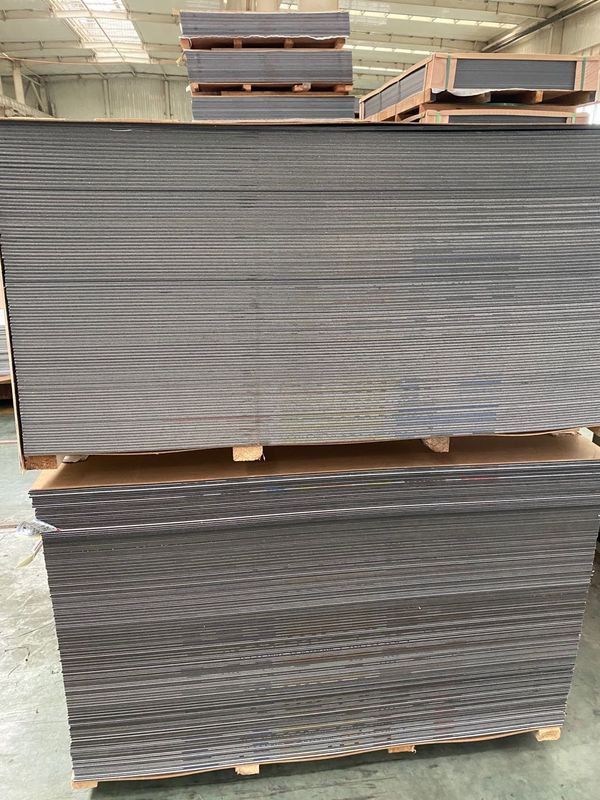

Aluminum composite panel consists of aluminum sheets,PE core material etc. It is widely used in building decoration,interior or exterior alike,for its light weight,strong,eco-friendly,durable,easy to maintain and easy to instal,very flexible and can be milled and cut/folded for designer purposes,with a huge range of colors and textures at your choice.
Aluminum composite panel is UV proof,mould proof,fungi and termite proof,rust proof,fire retardent,anti-acid,anti-alkali etc...
Aluminum composite panel can be used for exterior signboards,fascia,soproporta,shop fronts,bars,commercial centers,column cover,wall cladding material etc. And you can also see them in interior design,for instance,fake ceiling,cupboards,wardrobes,countertops,modular kitchens and so on. Even for military aircrafts,ACPs are also valued for their great mechanical performance and light weight.
Below is a basic structure of our ACP:

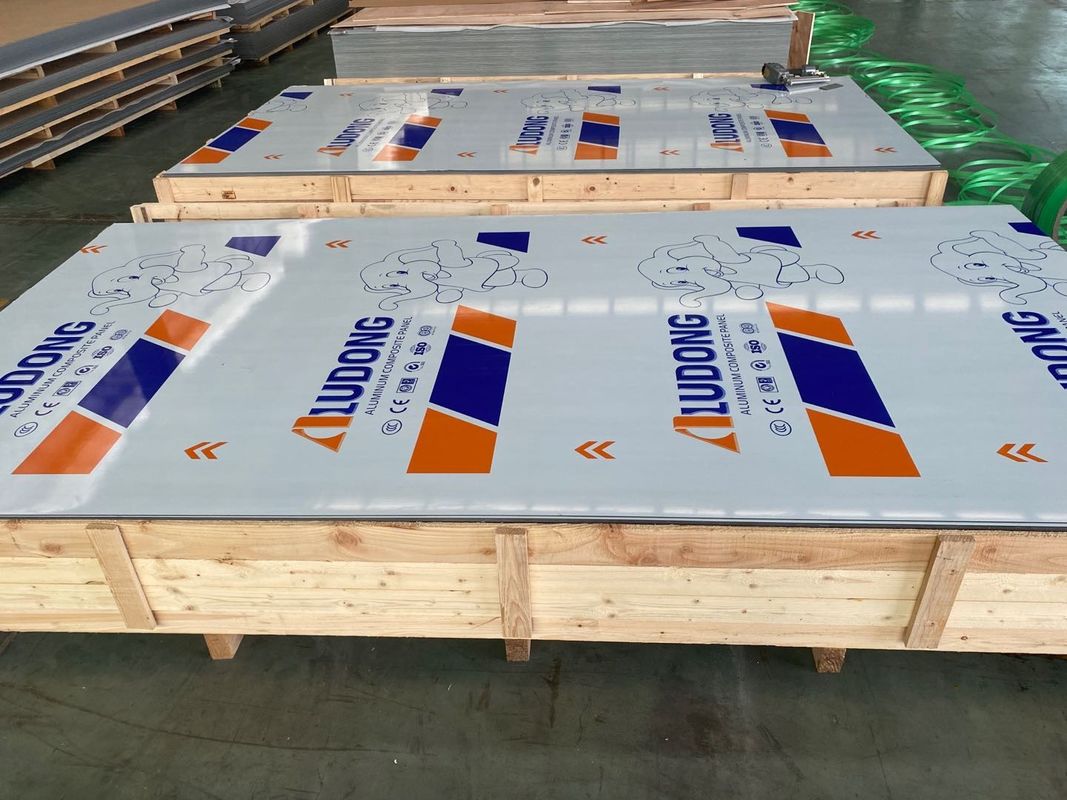

1 | Protective film | with ZWM/Aludong trademark or as your request |
2 | Coating | PE coating or PVDF coating |
3 | Aluminum skin | 0.03-0.6mm |
4 | Core material | PE Core |
5 | Rear side | Aluminum coating with primer or as requested |
items | standard | Test value |
Surface density | Rating±0.5kg/m2 | 6.8kg/m2 |
Impact strength | 50kg*cm no paint peeling or cracking | None |
Bend strength | ≥100Mpa | ≥104Mpa |
Flexuous modulus | ≥2.00*104Mpa | 3.00*104Mpa |
Through resistance | ≥9.0KN | ≥9.5KN |
Cutting strength | ≥28.0Mpa | 29.0Mpa |
1800peel strength | ≥7.0N/MM | 9.1N/MM |
Resistance to temperature changes | -400C~-800C 20times no change | No change |
